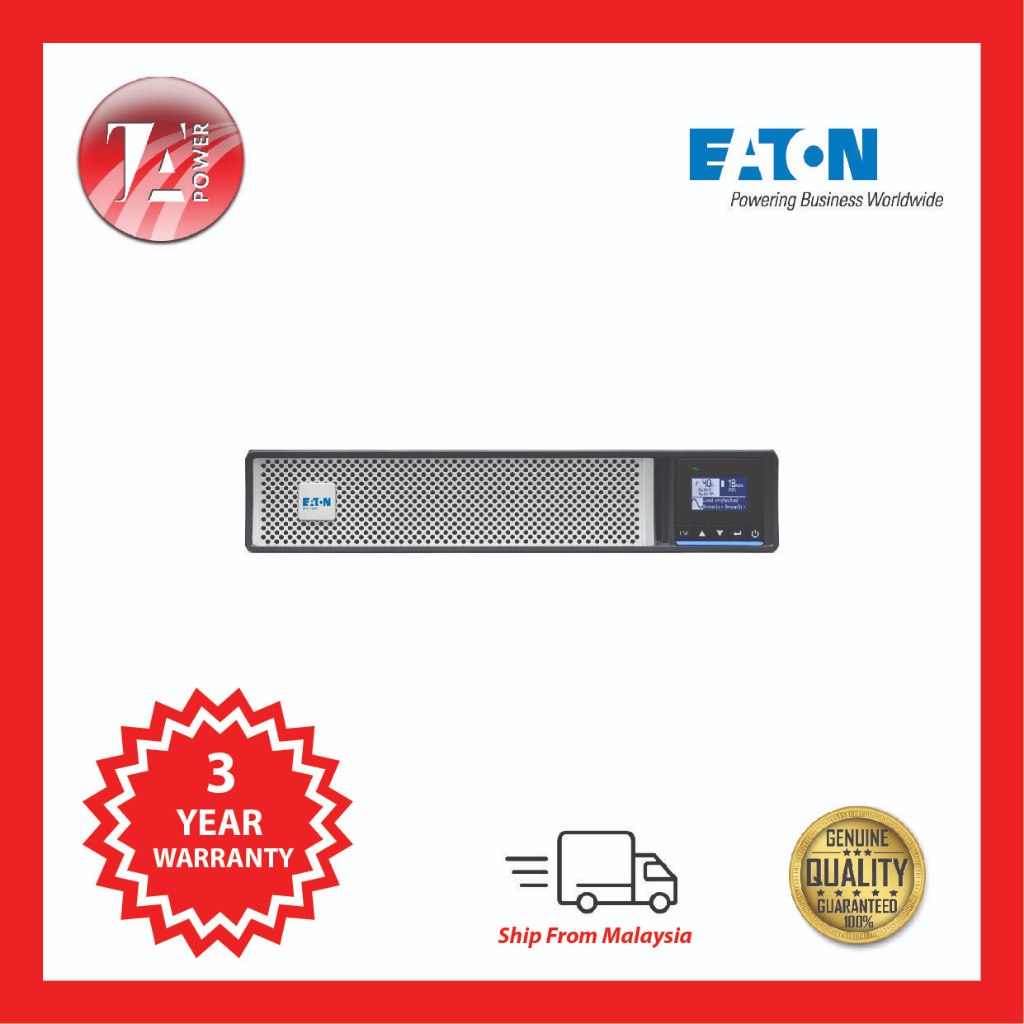

[PRE ORDER] Eaton 5PX1500IRT2UG2 5PX Gen2 UPS, 1500VA, 1500W, Input: C14, Output: (8) C13, Rack/Tower, 2U *3 Years Warranty

0 out of 5

RM4,355.00

5 in stock (can be backordered)

SKU: 9210-63060 Categories: Eaton, Uninterruptible Power Supply (UPS)
Compare

Description

*BATTERY*
BATTERY TYPE
Lead-acid maintenance-free (replaceable)

BATTERY REPLACEMENT
User replaceable

BATTERY QUANTITY
4

BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable), Automatic battery test, deep discharge protection, automatic recognition of external battery units

BATTERY RATING
12 V / 9 Ah

EXTENDED BATTERY CAPABILITY
Yes

*ELECTRICAL OUTPUT*
RECEPTACLE
(8) C13

VOLTAGE
230V

WATTAGE
1500 W

OUTPUT POWER FACTOR
1

OUTPUT VOLTAGE RANGE
230 V (+6%/-10%)

OUTPUT WAVEFORM
Sine wave

OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)

VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
0

FEED TYPE
1

TOPOLOGY
Line-interactive

VA RATING
1500 VA

*ELECTRICAL INPUT*
INPUT CONNECTION
C14

INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)

NOMINAL FREQUENCY
50-60 Hz

INPUT VOLTAGE RANGE
160-294 V (adjustable to 150 V-294 V)

INPUT FREQUENCY RANGE
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode

*COMMUNICATIONS*
INCLUDES NETWORK CARD
No

COMMUNICATION
● USB port (HID compliant)
● Serial port (RS232)
● Mini-terminal block for remote On/Off and Remote Power Off
● Mini-terminal block for output relay
● Dry contacts (3 outputs, 1 input, optocoupler, DB9)

USER INTERFACE
Multilingual graphical LCD display

POTENTIAL FREE SWITCH CONTACT
Yes

EXPANSION SLOTS
One slot for optional communication card

SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

TYPE OF INTERFACE
Other

*ENVIRONMENTAL*
ALTITUDE
3000 m

NOISE LEVEL
<40 dB at 1 meter TEMPERATURE RANGE 0° to 40°C (32° to 104°F), batteries recommended max. 25°C (77°F) RELATIVE HUMIDITY 0-90% non-condensing *ADDITIONAL SPECIFICATIONS* CONSTRUCTION TYPE 482.6 mm (19 inch) device PACKAGE CONTENTS ● Rack-mounting kit ● (2) Supports for tower mounting ● Cable locking system ● USB cable ● Serial cable ● (2) IEC-IEC cables ● Quickstart guide ● Safety instructions PHASE (OUTPUT) 1 AUTO SHUTDOWN FUNCTION Yes COLOR Black/silver EFFICIENCY 98 RACK MOUNTING KIT Yes PHASE (INPUT) 1

Additional information

Weight 29 kg
Dimensions 50 × 50 × 15 cm
