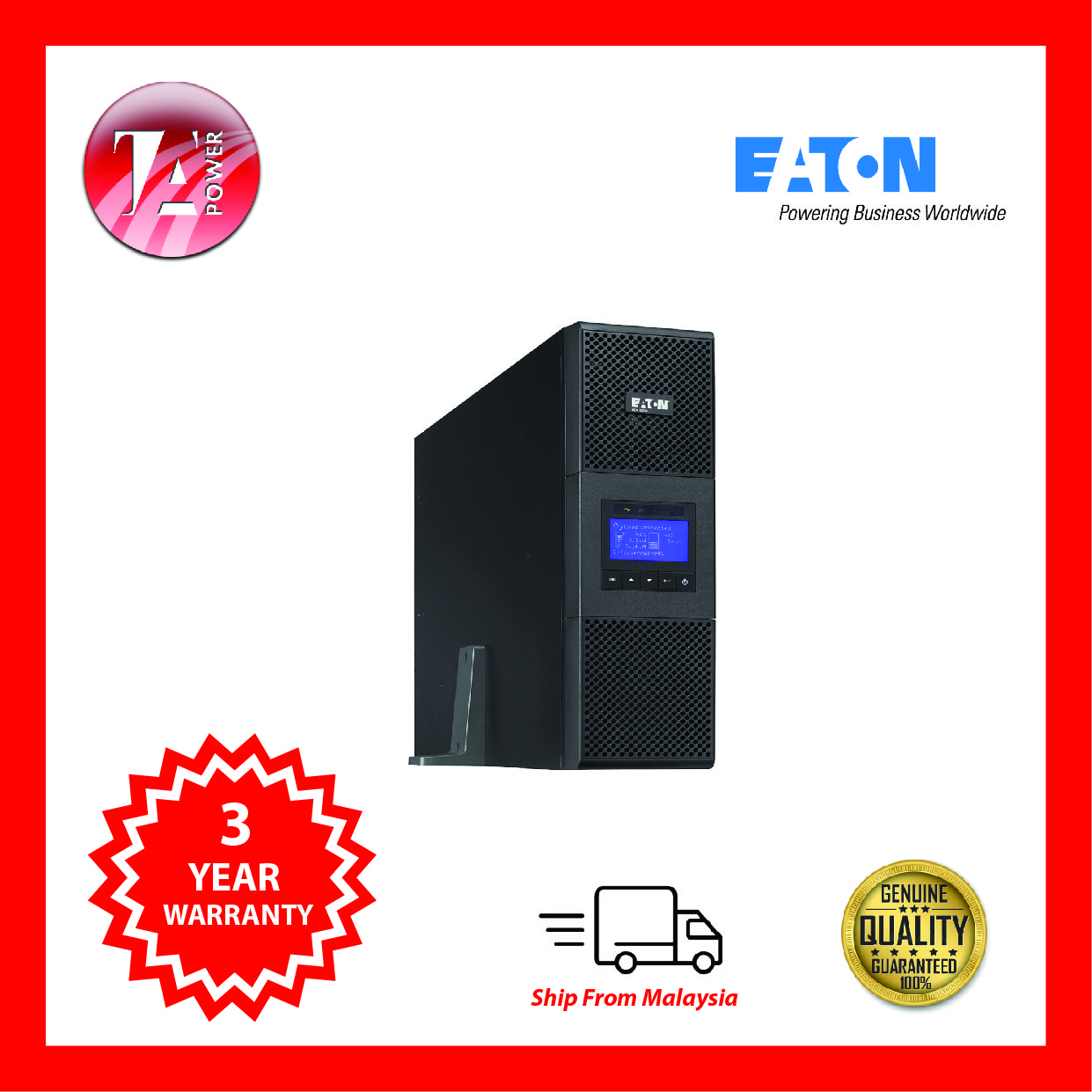

[PRE ORDER] Eaton 9SX6KiRT 9SX UPS 6000VA, 5400W, Input: Hardwired, Outputs: (8) C13, (2) C19, Hardwired, Rack/Tower, 3U (with Rack Kit) *3 Years Warranty

0 out of 5

RM14,100.00

Available on backorder

SKU: 9104-12567 Categories: Eaton, Uninterruptible Power Supply (UPS)
Compare

Description

*BATTERY*
BATTERY TYPE
Sealed, lead-acid

BATTERY REPLACEMENT
Hot-swappable internal batteries and extended battery modules (EBMs)

BATTERY QUANTITY
15

BATTERY MANAGEMENT
ABM & Temperature compensated charging method (user selectable)
Automatic battery test
Deep discharge protection
Automatic recognition of external battery units

BATTERY RATING
12 V / 5 Ah

EXTENDED BATTERY CAPABILITY
Yes

*ELECTRICAL OUTPUT*
RECEPTACLE
(8) C13, (2) C19, Hardwired

VOLTAGE
230V

WATTAGE
5400 W

OUTPUT POWER FACTOR
0.9

OUTPUT VOLTAGE RANGE
200/208/220/230/240 V +/- 1%

OUTPUT WAVEFORM
Sine wave

OUTPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240V)

VOLTAGE DISTORTION OUTPUT (LINEAR LOAD) – MAX
2

FEED TYPE
1

TOPOLOGY
Online/Double-conversion

VA RATING
6000 VA

*ELECTRICAL INPUT*
INPUT CONNECTION
Hardwired/fixed connection

INPUT NOMINAL VOLTAGE
230V default (200/208/220/230/240/250V)

NOMINAL FREQUENCY
50/60 Hz

INPUT POWER FACTOR
>.99

INPUT VOLTAGE RANGE
176-276 V (100-276 V with derating)

INPUT FREQUENCY RANGE
40-70 Hz

INCLUDES NETWORK CARD
No

COMMUNICATION
USB port (HID compliant)
Serial port (RS232)
Mini terminal block for remote On/Off
Mini-terminal block for remote power off
Dry contacts (4 outputs, relay, DB9)

ETHERNET INTERFACE
No

USER INTERFACE
Multilingual graphical LCD display

POTENTIAL FREE SWITCH CONTACT
Yes

EXPANSION SLOTS
One slot for optional communication card

SOFTWARE COMPATIBILITY
Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

TYPE OF INTERFACE
Other

*ENVIRONMENTAL*
ALTITUDE
3000 m

NOISE LEVEL
<45 dB at 1 meter TEMPERATURE RANGE 0° to 40°C (32° to 104°F) RELATIVE HUMIDITY 0-95% non-condensing *ADDITIONAL SPECIFICATIONS* CONSTRUCTION TYPE 482.6 mm (19 inch) device PACKAGE CONTENTS UPS (2) IEC-IEC output cables USB cable Serial cable (2) Supports for tower mounting (2) brackets for 19’ mounting (2) Rack-mounting kit Cable locking system Safety instructions Quickstart guide PHASE (OUTPUT) 1 INTERNAL BYPASS Yes AUTO SHUTDOWN FUNCTION Yes COLOR Black EFFICIENCY 94 RACK MOUNTING KIT Yes PHASE (INPUT) 1 HOT SWAP POWER No

Additional information

Weight 52 kg
Dimensions 74 × 49 × 18 cm
