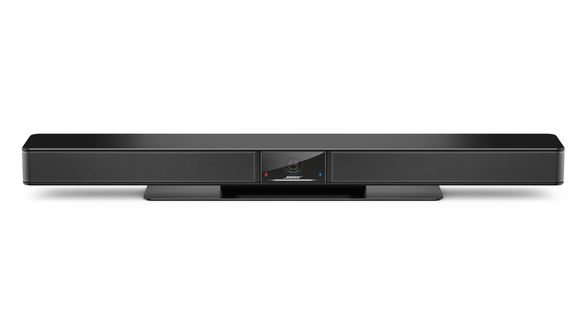

Bose VideoBar VB1 (Pre-Order)

0 out of 5


Bose Professional Videobar VB1 Specs

System Requirements macOS 10.10 or Later

Windows 7, 8.1, or 10

Google Chromebook

Microphone Setup
Microphones 6
Frequency Response 20 Hz to 15 kHz
Pickup Range 20′ / 6 m
Beamforming Static and Dynamic Adaptive Beamforming
Noise Cancellation Noise Suppression and Stereo Acoustic Echo Cancellation
Enclosure Ported
Number of Speakers 2
Amplifier Power 20 W per Channel
Distortion <0.3% over Frequency Response
Maximum SPL 89 dB SPL at 3.3′ / 1 m, IEC 60268-5
Frequency Response 85 Hz to 20 kHz (-10 dB)
Supported Resolutions UHD 2160p (4K), 1080p, 720p, 960 x 480, 848 x 480, 640 x 480, 640 x 360, 432 x 240 (30 fps)
Encoding H.264, M-JPEG
Field of View (FOV) Diagonal: 120°
Horizontal: 109°
Vertical: 67°
Sensor 8 MP, 4K Resolution
Digital Zoom 5x
Focus Distance 1.6′ / 0.5 m to Infinity
UVC Video Class v1.1
White Balance Automatic
Brightness Control Automatic
USB Connectors 1 x USB 3.0 Type-C
1 x USB 3.0 Type-A
HDMI Connector 1 x HDMI 1.4 Type-D
Audio Input 1 x 1.8″ / 3.5 mm TRS
Ethernet 1 x RJ45
GPI 1 x 2-Pin Euroblock
Ethernet Specifications IEEE 802.3
Wi-Fi Standard 802.11ac (Wi-Fi 5)
USB Specifications USB 3.0 UAC, UVC, HID
Bluetooth Version 4.2
Bluetooth Profiles HSP, A2DP, AVRCP, BLE
Display DisplayLink
Safety IEC/UL/EN 60065:2014/A11:2017, IEC/UL/EN 62368-1:2014/A11:2017
EMC FCC Part 15B Class B, ICES-003 Class B, CISPR 13, EN55032 Class B, EN55035, EN61000-3-2, EN61000-3-3, BSMI CNS13439
Wi-Fi FCC Part 15C, RSS-GEN, RSS-247, RSS-102, EN300328, EN301893, EN301489
Environmental RoHS
Operating Humidity Up to 90% (Non-Condensing)
Storage Humidity Up to 93% Relative Humidity
Storage Temperature -40°F to 158°F / -40°C to 70°C
Power Supply Input 110 to 240 VAC, 50/60 Hz, 1.5 A Max
Power Supply Output 24 VDC, 1.875 A
Mounting Table Stand (Included)
Wall Mount (Included)
Kensington Security Slot
Dimensions Videobar VB1: 1.9 x 27 x 3.8″ / 4.8 x 68.6 x 9.6 cm
Remote Control: 0.7 x 1.9 x 4.9″ / 1.8 x 4.8 x 12.4 cm
Weight 5.6 lb / 2.5 kg
Packaging Info
Package Weight 11 lb
Box Dimensions (LxWxH) 29 x 5.7 x 5.5″

Warranty : 1 to 1 exchange during 2 years against manufacturing defect

SKU: 842415-1110 Categories: Bose, Video Conferencing System (VC), Videobar




4k ultra-hd camera icon



Multiple mounting options icon



6 beam-steering microphones icon



Signature bose sound quality icon



Remote management icon



Elegant low-profile design






Hybrid work models mean some are in the building, some are remote — and everyone’s on calls all day. Videoconferencing keeps your business moving. The Bose Videobar™ VB1 brings the practical simplicity and stunning clarity of Bose to every meeting, for every participant, near and far. So teams can feel more together and get more done.

Bring the Bose experience to huddle spaces and medium-sized conference rooms with an all-in-one solution that requires minimal setup and delivers premium audio and video performance.



Make conversation more natural with six beam-steering microphones that actively focus on voices and reject noise; and auto EQ that delivers optimized audio to all participants.


 Bose VideoBar VB1

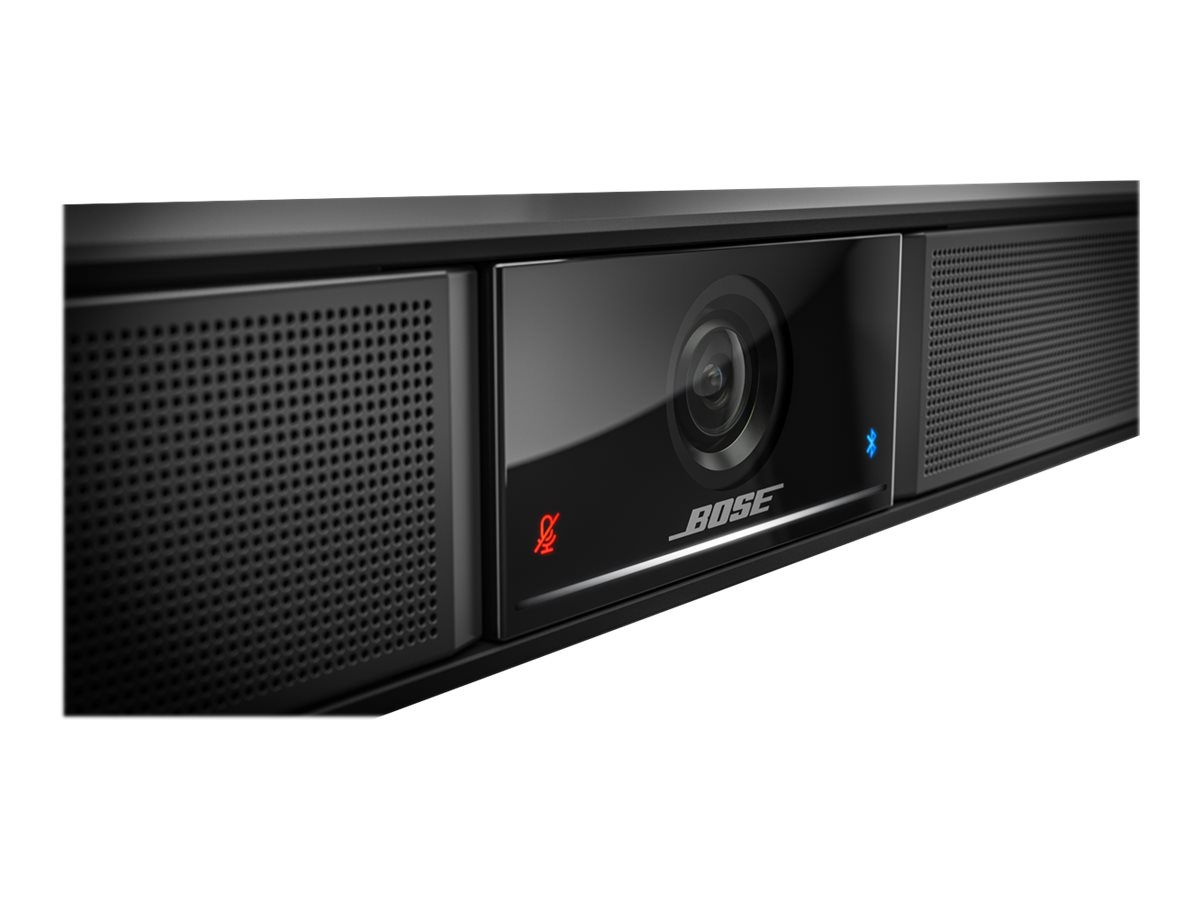

Communicate and be seen more clearly — a 4K ultra-HD camera with autoframing allows everyone to see and understand the presenter, whiteboard, flipchart, or other in-room objects — and feel more like they’re together in the same room.




Bring enhanced video and audio performance to popular Unified Communications platforms such as Microsoft Teams, Google Meet, Zoom, and more.




Support multimedia presentations with premium audio with Bose-proprietary transducers that deliver room-filling sound from a USB-connected laptop or wireless Bluetooth® device.



Clean up the conferencing experience with an elegant low-profile design that complements the room, improves aesthetics, and connects via a single USB cable, eliminating clutter.


Bose Videobar in hand image







Bose Videobar collage



Mount easily in multiple ways with included table stand and wall-mount kit or with VESA mounting accessory (sold separately)


Connect to existing network infrastructure, making installation and troubleshooting faster and allowing for remote updates, management, and monitoring


Configure easily with Bose Work Configuration software, available as an app or via web browser; and manage remotely with Bose Work Management software for single-device or enterprise-wide, multi-device changes, and to view device status in real time


Control settings in real time from a smartphone using the Bose Work mobile app to easily adjust volume, mute, pan, tilt, zoom, zoom presets, and Bluetooth® pairing


Easily connect a smartphone via Bluetooth connectivity to use as a standalone speakerphone or stream music




Best of show ISE 2020 award



Best of show InfoComm 2020 award




Solstice Conference from Mersive – Solstice Conference enhances video conferencing with rich, multi-participant content sharing to deliver a better collaboration experience between onsite and remote users. Solstice makes any room a Zoom, Teams and Webex room by wirelessly connecting the conferencing services on users’ laptops to the room technology. With Solstice your teams experience powerful collaboration, agnostic room conferencing, one-step meeting start, wireless USB connectivity and touchless meetings. For more information, visit



mersive technologies inc logo





Leon logo



Bose Videobar™ VB1 & Leon Speakers ­Enhance your meeting room appearance by combining the Bose Videobar™ VB1 with the patented Leon Speakers Tonecase FIT Universal mounting system. The TcFIT-U mounts the VB1 directly under the display and covers the unit with a grille that includes a custom cut-out for the camera and is built to match the exact width of the display.  The TcFIT-U blends the VB1 with the screen for a clean, streamlined look.

Additional information

Weight 2.5 kg
Dimensions 9.6 × 68.6 × 4.8 cm
